Lightware’s video distribution technology was a pivotal component in bringing the KOISHIKAWA XROSS Digital Museum to life.
Lightware’s MX2-48X48-HDMI20-A-R matrix switcher was deployed at this groundbreaking immersive theater, located at TOPPAN Koishikawa.
With its use of ultra-high-resolution displays and next-generation AV integration, the XROSS Theater is a milestone in immersive experience design, made possible through a collaboration between For-A Co., Ltd., MTC Japan and Lightware.

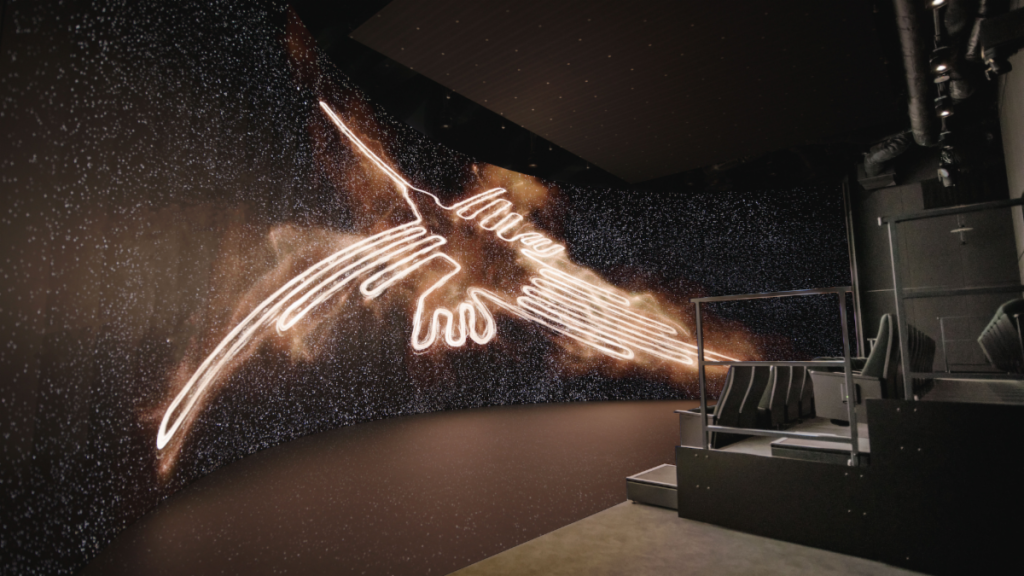

The theatre boasts a 16K Crystal LED screen, along with a Leyard ceiling LED screen and a LED floor screen, designed to fully immerse audiences in striking visuals of clarity and scale. However, with such advanced technology came equally complex technical demands. TOPPAN required a system that could support HDMI 2.0 distribution across a 64x64 matrix, providing seamless 4K 60P RGB 4:4:4 video quality. Yet, as project partners quickly discovered, there were no domestic manufacturers that offered a 64x64 HDMI matrix that supported 18 Gbps with non-blocking and met RGB 4:4:4 specifications, at the time.
This limitation left MTC Japan, the project’s AV integration partner, facing a significant challenge. According to Junji Matsuoka from MTC Japan: “The lack of a 64x64 HDMI 2.0 matrix in Japan which supported 18 Gbps with non-blocking and met RGB 4:4:4 specifications, posed a serious constraint. We knew we needed a high-capacity, reliable solution that could handle the 18 Gbps data stream efficiently, and Lightware’s MX2-48X48-HDMI20-A-R was the only matrix switcher capable of meeting these requirements.”
The Lightware MX2-48X48-HDMI20-A-R matrix switcher stood out for its ability to manage an uninterrupted, high-bandwidth signal flow without compromising quality. Lightware’s equipment had been previously used by MTC Japan, and based on this positive experience, MTC was confident that the MX2-48X48-HDMI20-A-R would be the ideal choice to support XROSS Theater’s ambitious specifications.
Matsuoka shared: “The high-level video distribution capability of the MX2 was a game changer. In addition to offering a 64x64 HDMI 2.0 matrix, the MX2’s seamless integration with control systems through Lightware’s LW2 protocol simplified what could have been an intricate setup.”
At the heart of XROSS Theater’s AV system is a PC server developed by TOPPAN that outputs eight signals, all routed through Lightware’s matrix to the videowall processor. On the output side, the MX2-48X48-HDMI20-A-R distributes signals to the RGBlink X8 processor with 24 inputs, which handle the stunning 16K projections on the Crystal LED screen. As with any complex installation, the XROSS Theater project presented several integration challenges.
Yu Nakamura from TOPPAN Inc. explained: “The biggest challenge was coordinating all the moving parts and ensuring seamless integration. Lightware’s MX2, with its non-blocking switching and reliable 18 Gbps performance, played a key role in overcoming these hurdles. It gave us confidence that the video distribution would be executed, which was crucial for the immersive environment we wanted to create.”
Lightware’s MX2-48X48-HDMI20-A-R matrix switcher has proven instrumental in the creation of XROSS Theater, enabling TOPPAN to achieve an unprecedented level of immersion and quality in video projection. By overcoming bandwidth and resolution constraints and seamlessly integrating into a complex AV network, Lightware has provided a dependable foundation for this state-of-the-art theatre.
